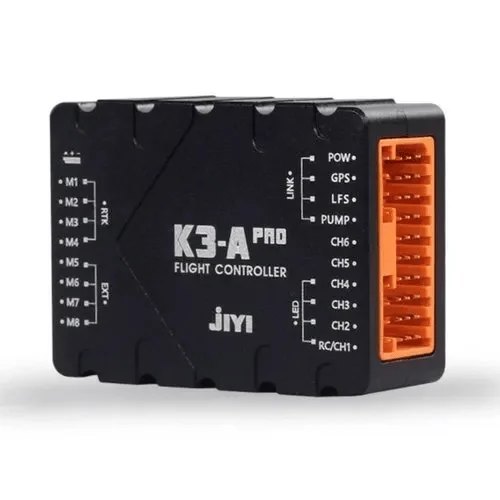

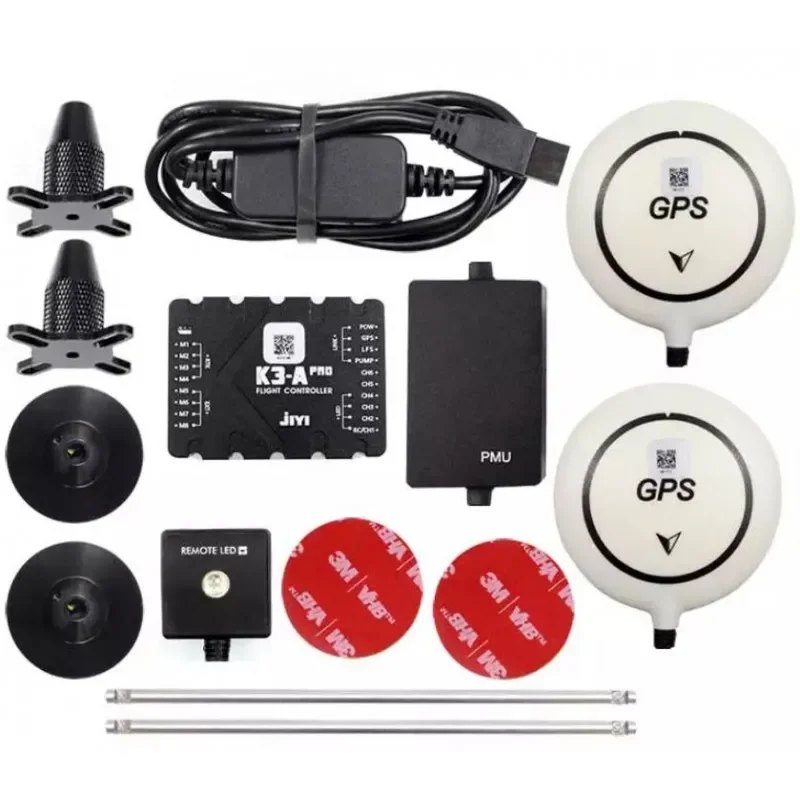

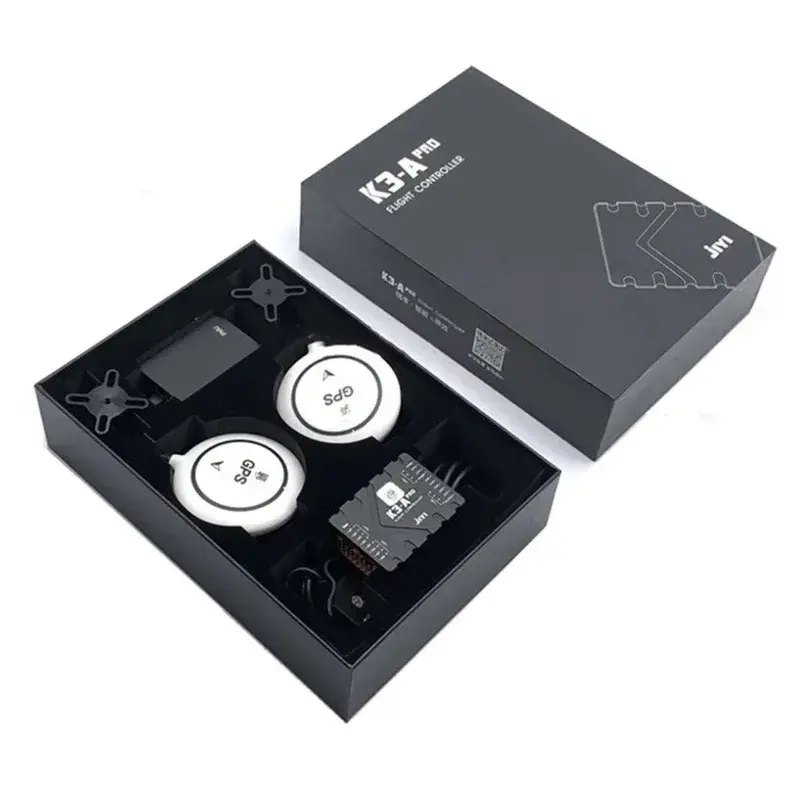

JIYI K3-A Pro Flight Controller Kit for Agriculture Drones

Product Details

The JIYI K3-A Pro Flight Controller Kit is a professional flight-control system developed specifically for agricultural spraying drones. It supports manual, semi-autonomous and autonomous flight operations, providing stable control for spraying, seeding and other agricultural UAV applications. The K3-A Pro supports attitude stabilisation, altitude holding, GPS flight, AB route operation, automatic return, breakpoint continuous spraying, water-pump control and terrain-following functions. It can monitor pesticide flow in real time and intelligently coordinate spraying volume for efficient agricultural operations. The standard dual-GNSS configuration provides greater positioning and heading redundancy for safer and more stable flight. The system is compatible with quadcopters, hexacopters and octocopters and supports up to eight motor-output channels. Key Features: • Designed specifically for agricultural spraying drones • Supports manual, semi-autonomous and autonomous flight • Standard dual-GNSS positioning configuration • AB route operation for straight-line agricultural spraying • Automatic return and out-of-control return protection • Breakpoint continuous spraying function • Water-pump and flow-sensor support • Terrain-following support with compatible radar • Supports RTK, radar, data link and flow-sensor modules • Compatible with quadcopter, hexacopter and octocopter platforms • Supports PPM and S-BUS receivers • Maximum eight motor-output channels • Compatible with 2S–12S drone power systems • Professional agricultural ground-control application support Technical Specifications: • Brand: JIYI • Model: K3-A Pro / K3A Pro • Product Type: Agriculture Drone Flight Controller Kit • Supported Frames: Quadrotor, hexacopter and octocopter • Maximum Output Channels: 8 • Supported Receivers: PPM and S-BUS • Supported Peripherals: Radar, RTK, data link and flow-sensor module • Working Voltage: 2S–12S • Power Consumption: Less than 2 W • Working Temperature: 0°C to 60°C • Storage Temperature: -40°C to 60°C • Maximum Tilt Angle: 30° • Maximum Yaw Speed: 150°/s • Maximum Vertical Speed: 6 m/s • Flight Controller Weight: Approximately 56 g • Flight Controller Dimensions: 53.5 × 40 × 21 mm • GPS Weight: Approximately 45 g each • GPS Dimensions: Approximately 63 × 15 mm • PMU Weight: Approximately 39 g • PMU Dimensions: 53.5 × 34.5 × 14.5 mm • LED Module Weight: Approximately 13 g • LED Module Dimensions: 24 × 24 × 8 mm Available in India from Aero Drone Technologies Private Limited, an agriculture-drone company incorporated in 2019. Contact our technical team for product compatibility, installation support, configuration assistance and agriculture-drone spare parts.
