BP14 14 LPM BLDC Brushless Diaphragm Pump for Agriculture Drones

Product Details

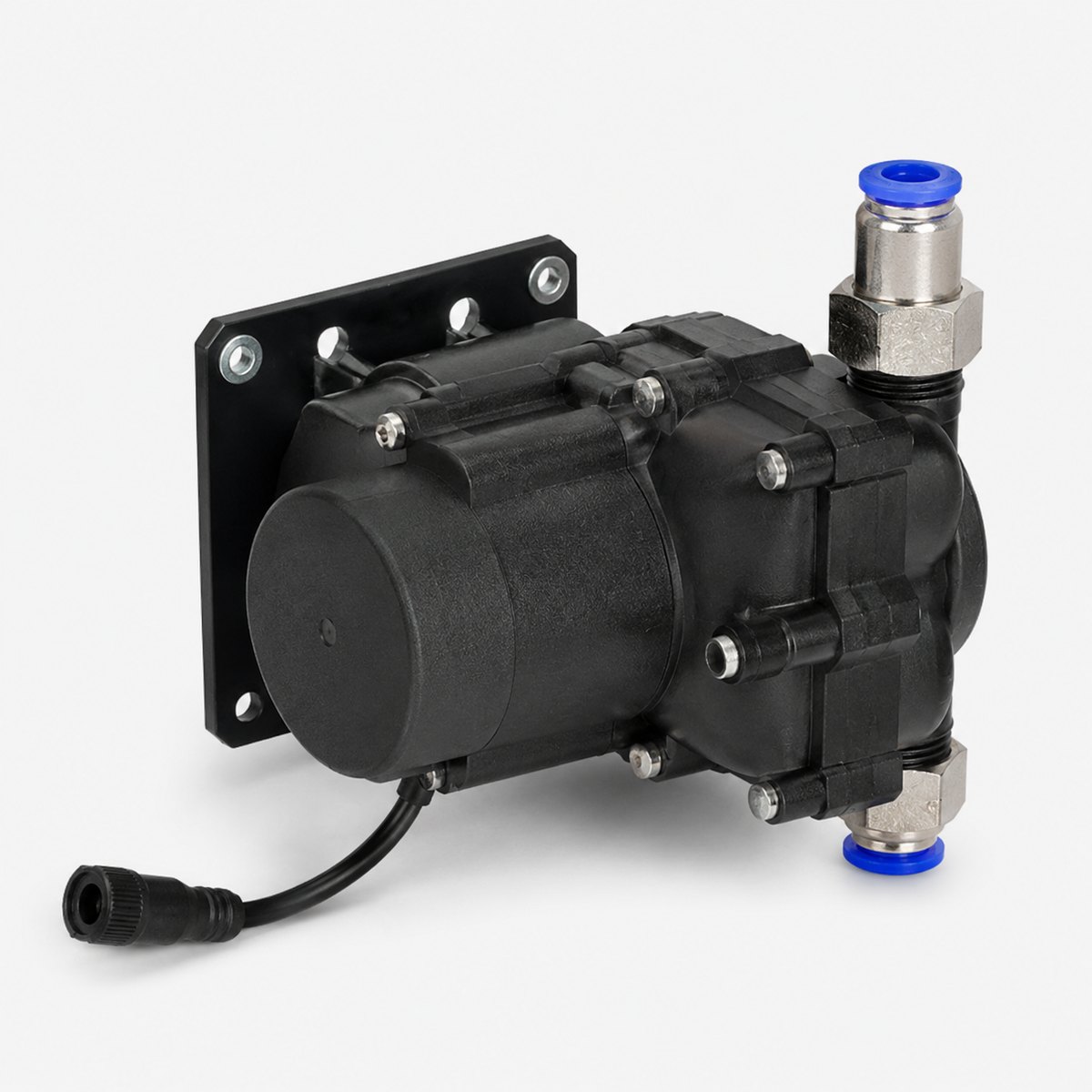

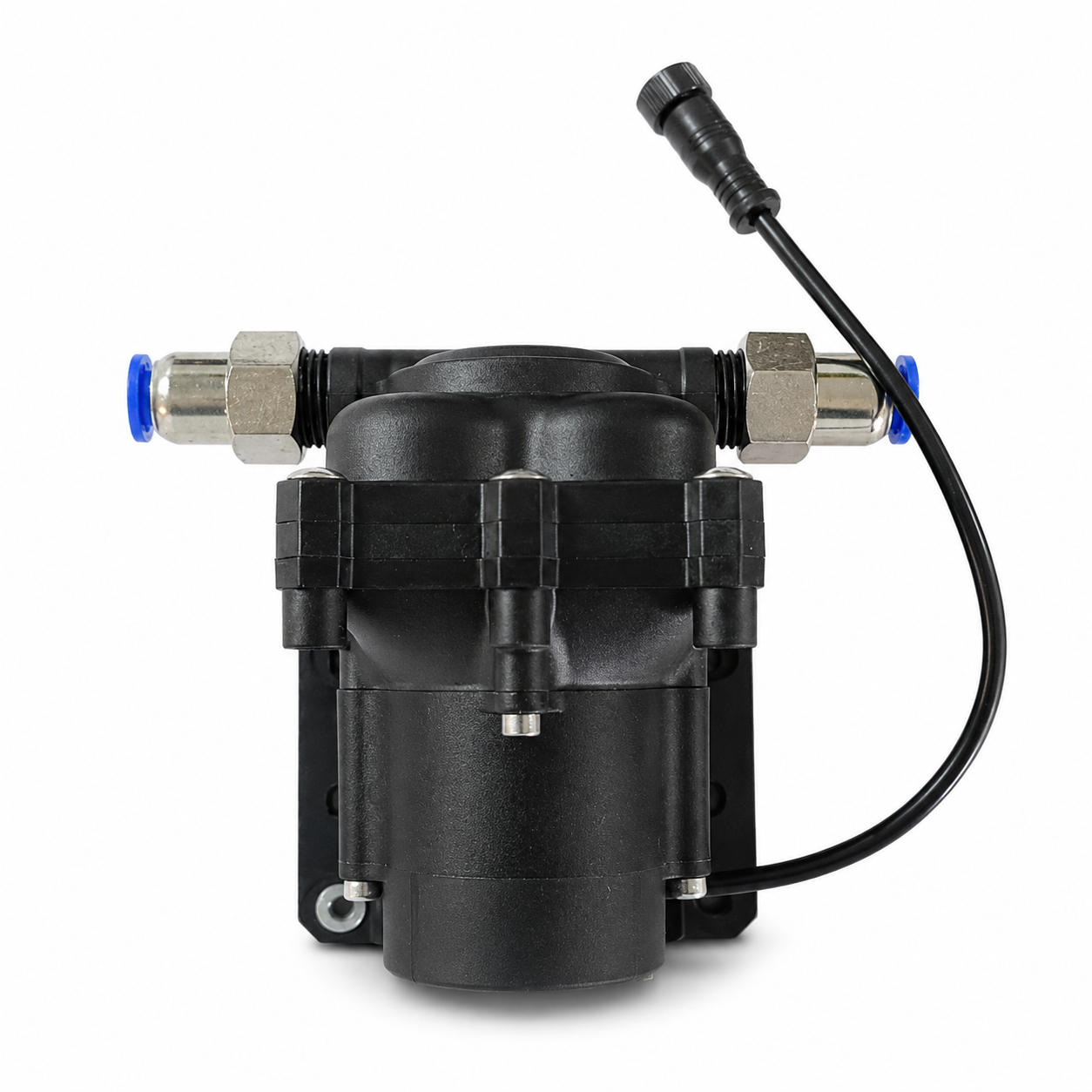

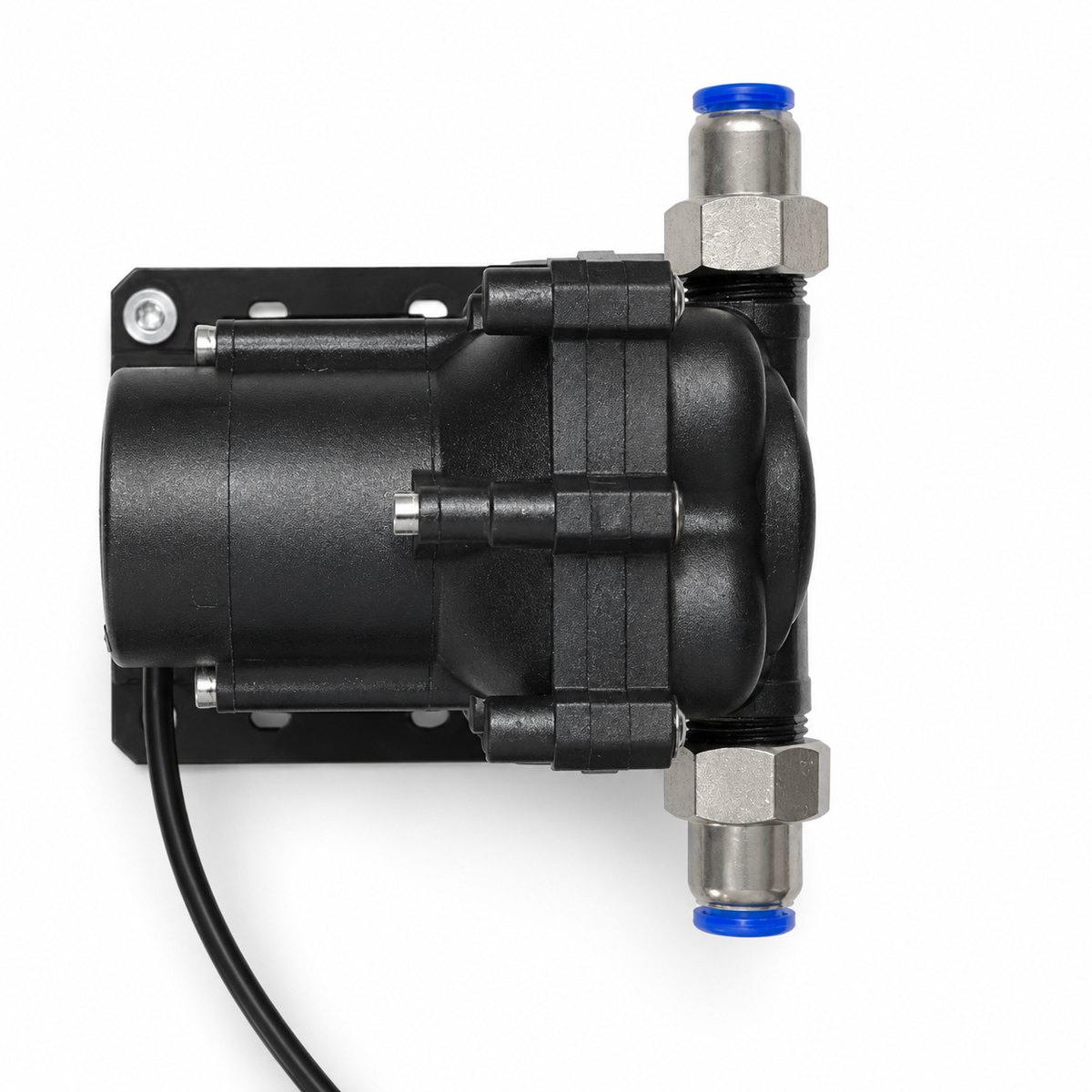

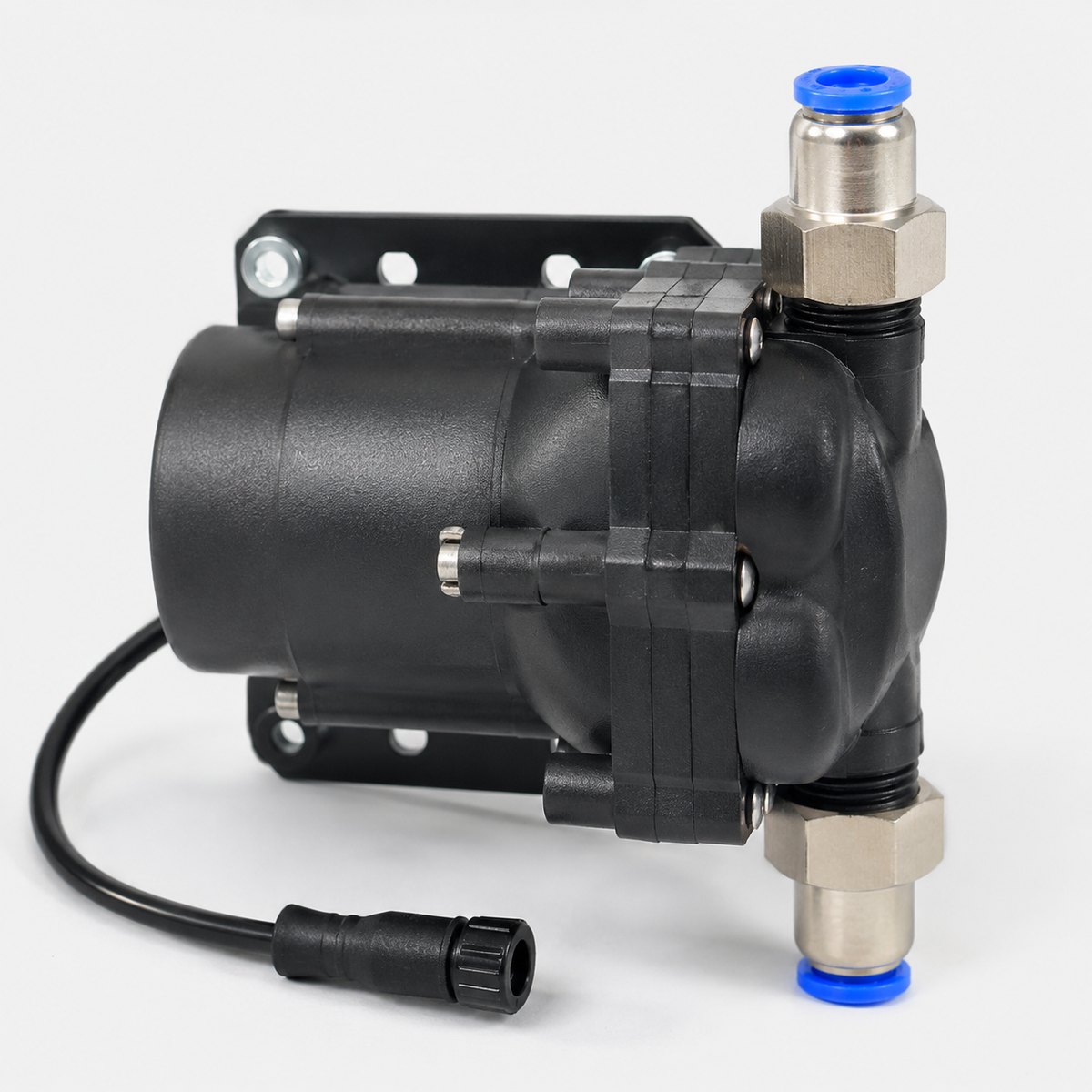

The BP14 14 LPM BLDC Brushless Diaphragm Pump is designed for liquid delivery in agricultural drone spraying systems. It helps transfer pesticide, fertiliser and other compatible spraying liquids from the drone tank to the spray-line and nozzle system. The pump uses a brushless DC motor and diaphragm pumping mechanism for controlled liquid flow during agriculture drone spraying operations. According to the physical product label, it supports an adjustable flow range of approximately 0.5 to 14 litres per minute, a rated power of 60W and an operating voltage range of 30V to 80V or 7S to 18S. The pump has a pressure range of 0.1 to 0.35 MPa and includes metal push-fit pipe connectors with blue locking collars, a black electrical cable connector and an integrated mounting bracket for installation inside a compatible agricultural drone spraying system. Product-label specifications also indicate dimensions of approximately 125 × 100 × 90 mm, IP67 protection and an operating-temperature range of -20°C to 85°C. This pump is suitable for agriculture spraying drones, UAV pesticide spraying systems, fertiliser spraying systems, drone pump replacement and custom agricultural drone assembly. Compatibility must be checked according to the drone voltage, pump-control output, pipe diameter, connector type, required flow rate and mounting arrangement before installation. Available in India from Aero Drone Technologies Private Limited, an agriculture-drone company incorporated in 2019. Contact our technical team for compatibility, installation and product-support assistance.
