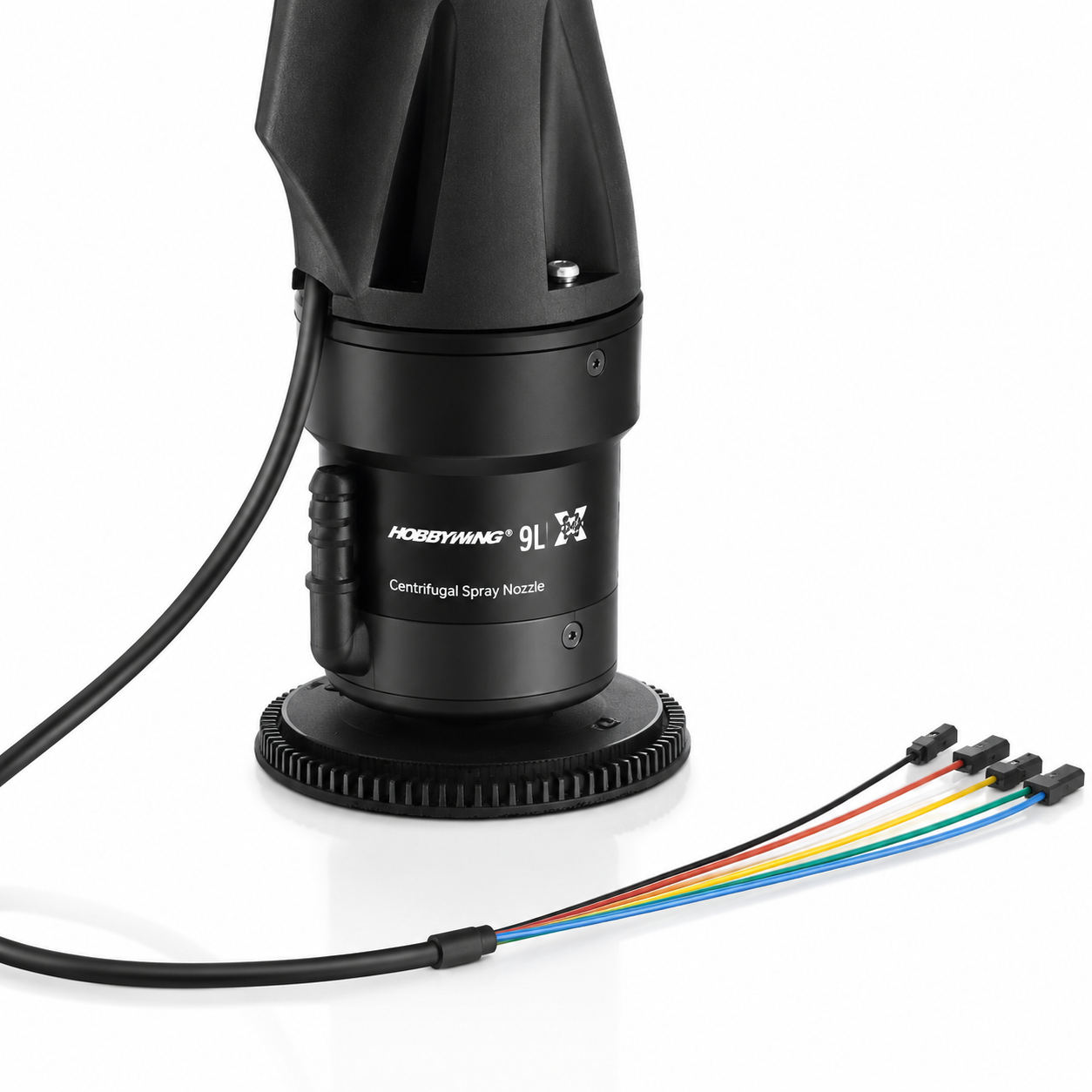

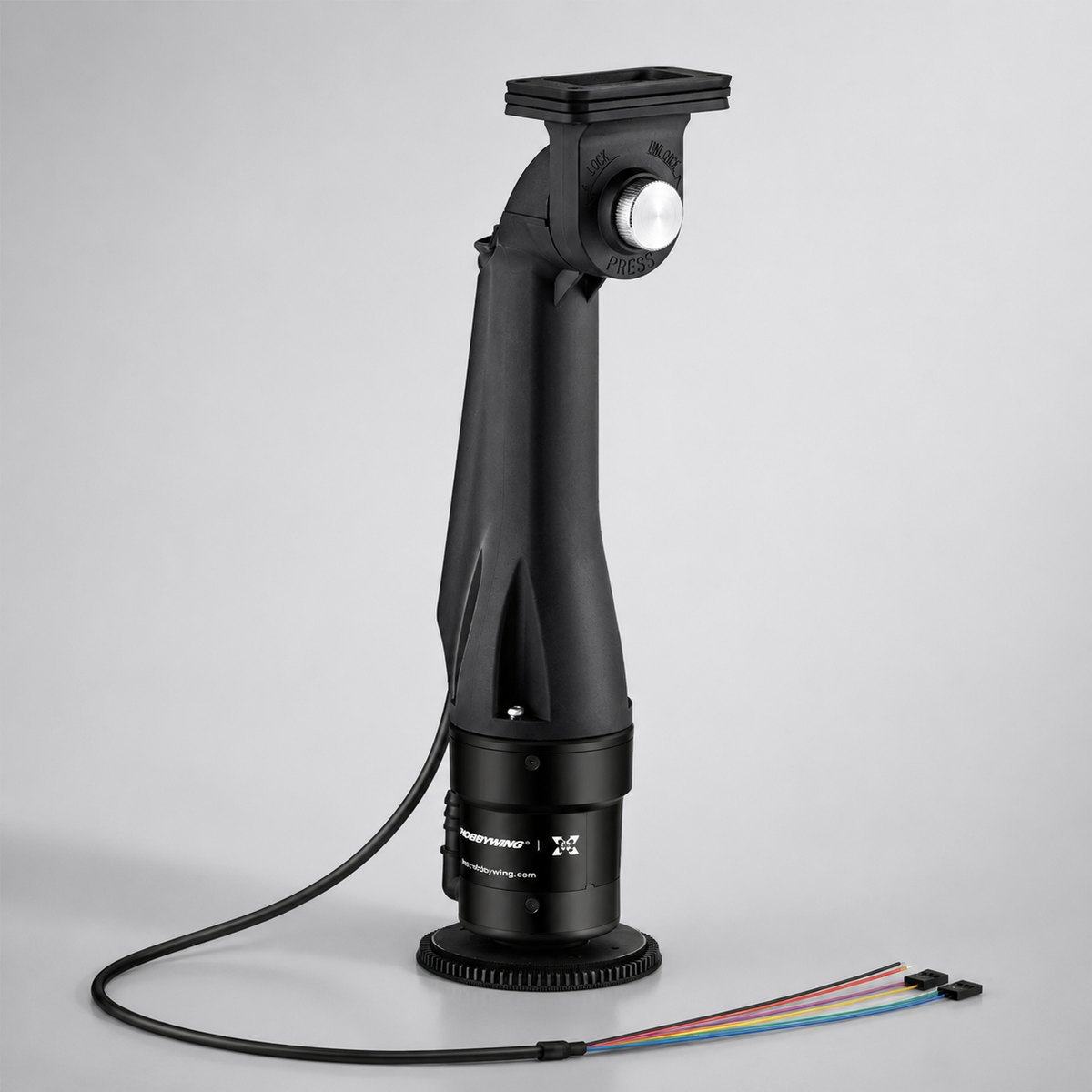

HOBBYWING SPRAY 9L Centrifugal Nozzle for Agriculture Drones

Product Details

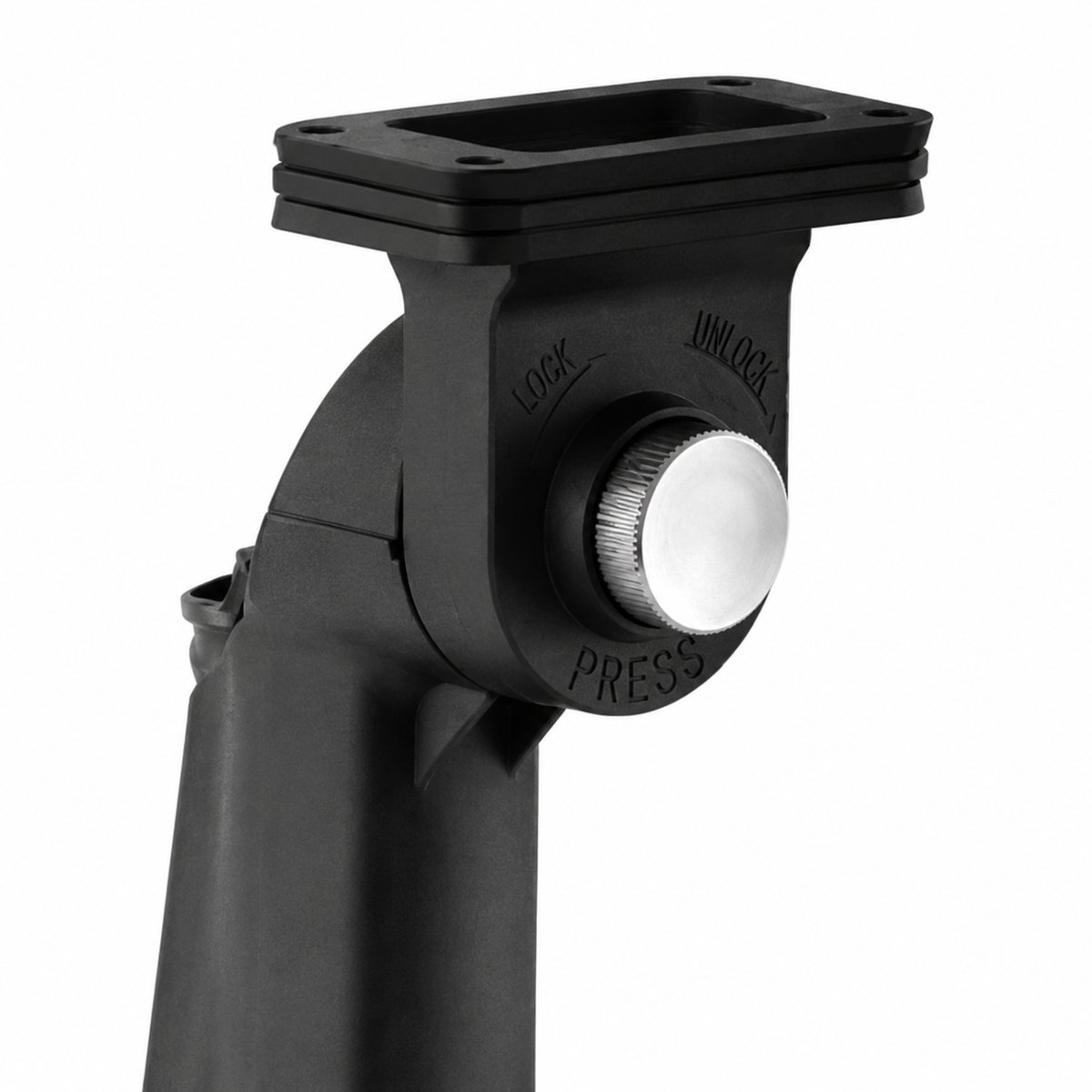

The HOBBYWING SPRAY 9L Centrifugal Nozzle is a high-flow atomising nozzle designed for agricultural spraying drones. It uses a high-speed rotating spray disc to produce uniform, adjustable droplets for pesticide, fertiliser and other compatible agricultural spray applications. The nozzle supports a maximum flow rate of 9 L/min and a rated flow rate of 5 L/min. Its droplet-size range is approximately 35–500 microns, allowing the atomisation effect to be adjusted according to the flow rate and rotation speed. It supports 12S to 18S battery systems and can be controlled through PWM or CAN. The official specifications list a maximum output power of 500W at 54V and a maximum continuous rated output of 350W at 54V. The modular folding structure helps with transportation, handling and installation. It is compatible with the mounting dimensions of HOBBYWING X9, X11, X13 and X15 agriculture-drone propulsion systems. The nozzle is suitable for aqueous solutions, emulsifiable concentrates and suspension concentrates without requiring a nozzle change. Its corrosion-resistant construction and IPX6 protection support demanding agriculture-drone spraying operations. Before installation, verify the battery voltage, mounting dimensions, controller communication, wiring sequence and agriculture-drone compatibility. Available in India from Aero Drone Technologies Private Limited, an agriculture-drone company incorporated in 2019. Contact our technical team for compatibility, installation and product-support assistance.
