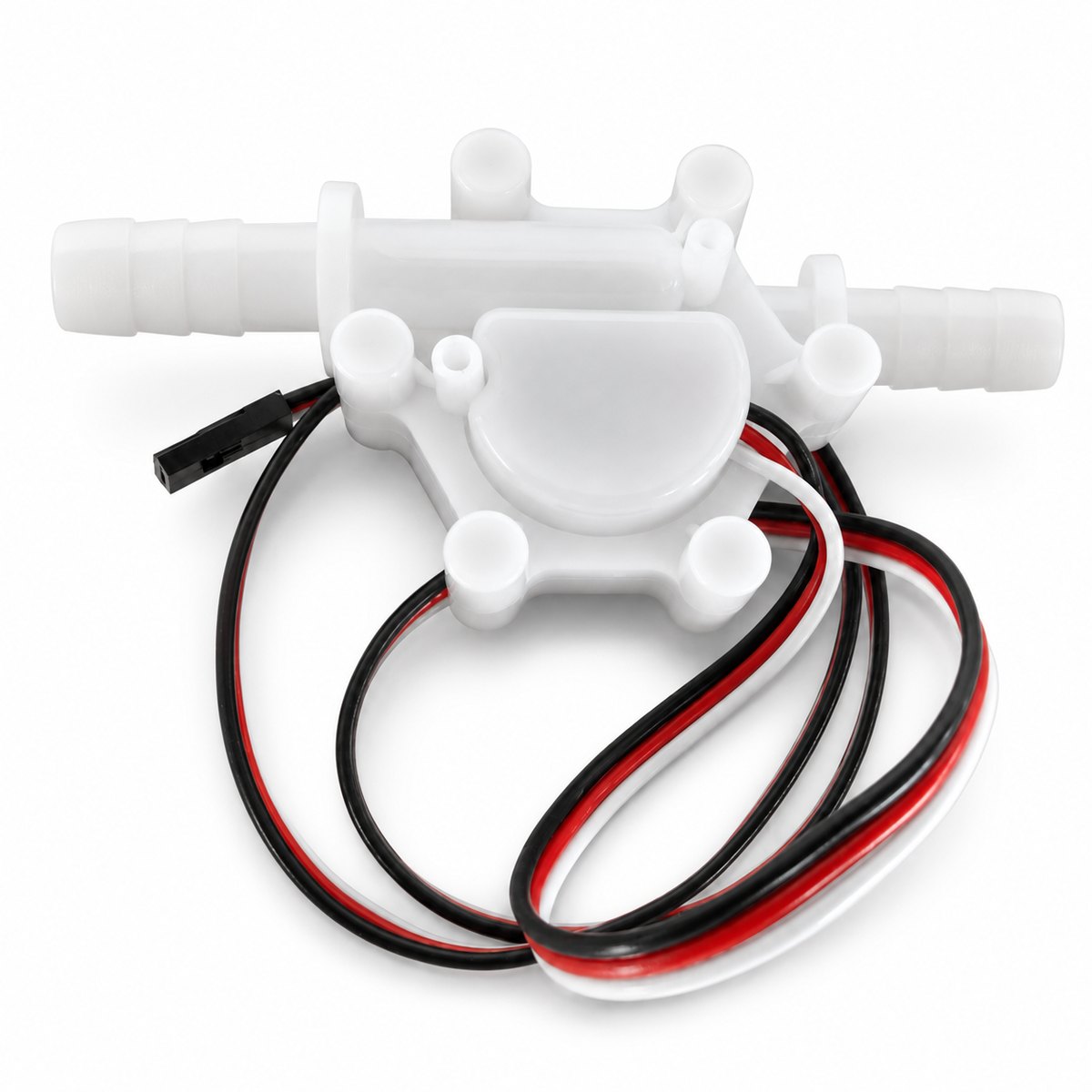

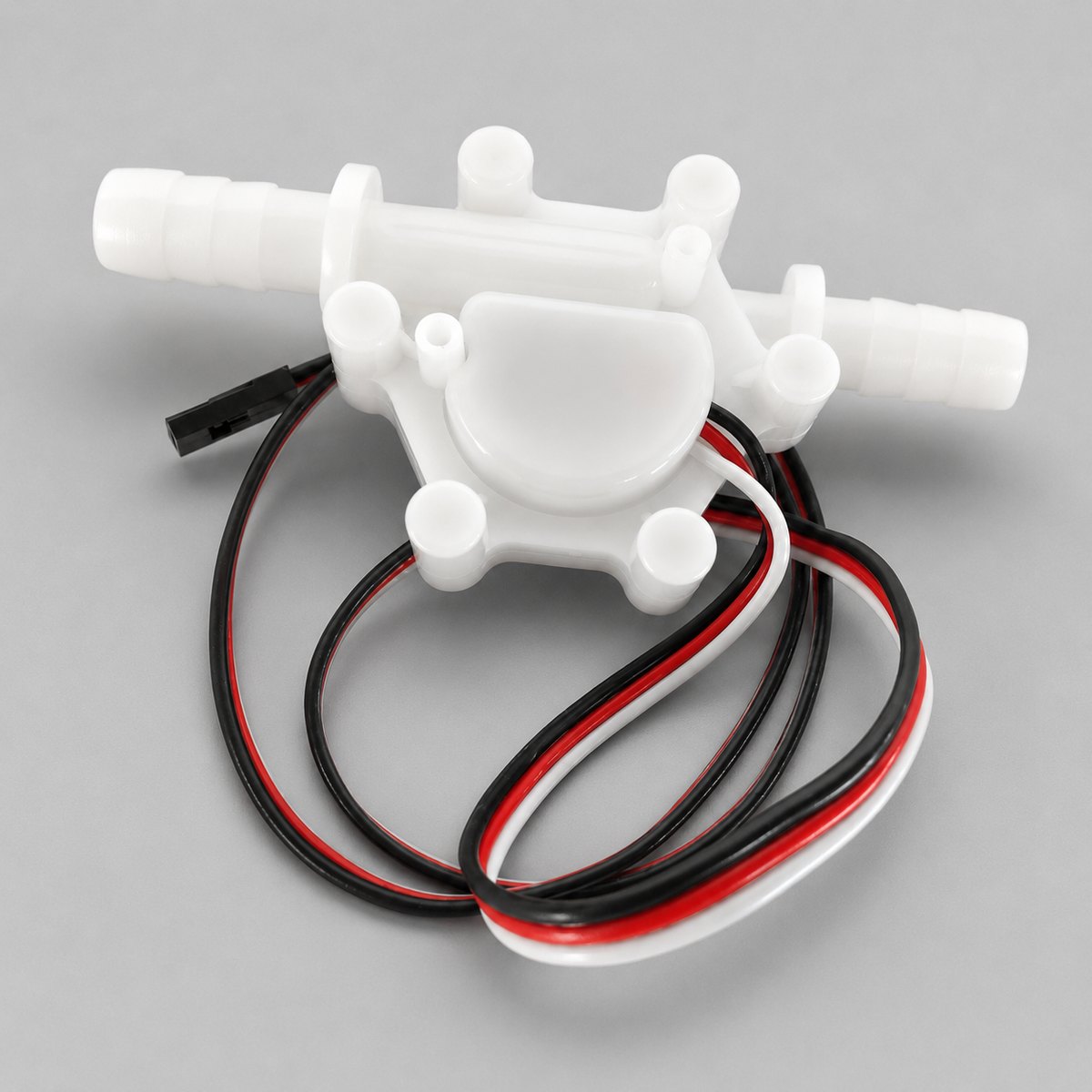

JIYI Water Flow Sensor for Agriculture Drone Spray System

Product Details

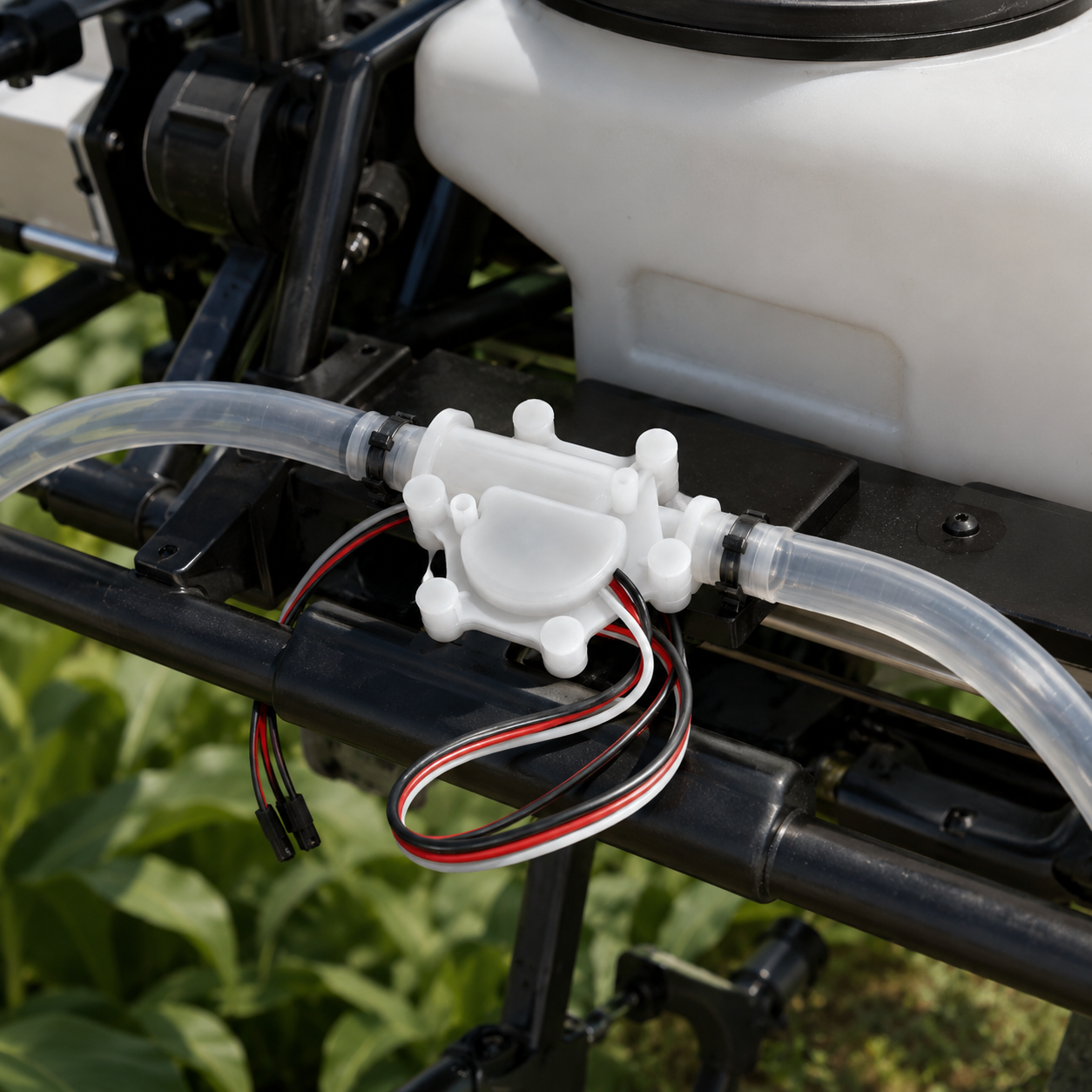

The JIYI Water Flow Sensor is an inline liquid-flow measurement device designed for compatible agriculture-drone spraying systems. It is installed in the liquid pipeline to measure the flow of water or compatible spraying liquid moving between the spray tank, pump and nozzle system. The sensor sends pulse feedback through its three-wire electrical connection to a compatible agriculture-drone flight controller. This helps the spraying system monitor liquid delivery and maintain more consistent application during agricultural operations. Matching product specifications list a flow-measurement range of 0.2–6 litres per minute, an operating-voltage range of DC 4.5–18V, maximum operating current of 10mA and pressure resistance up to 0.35MPa. It is commonly listed for use with JIYI K++ V2 and K3A Pro agriculture-drone flight controllers. Before installation, confirm the hose size, connector pin sequence, supply voltage, flow direction and flight-controller compatibility. Test the complete spraying system with clean water before using pesticides, fertilisers or other agricultural liquids. Available in India from Aero Drone Technologies Private Limited, an agriculture-drone company incorporated in 2019. Contact our technical team for compatibility, installation and product-support assistance. Confirm chemical compatibility, hose dimensions and exact connector details from the physical product or supplier datasheet.
